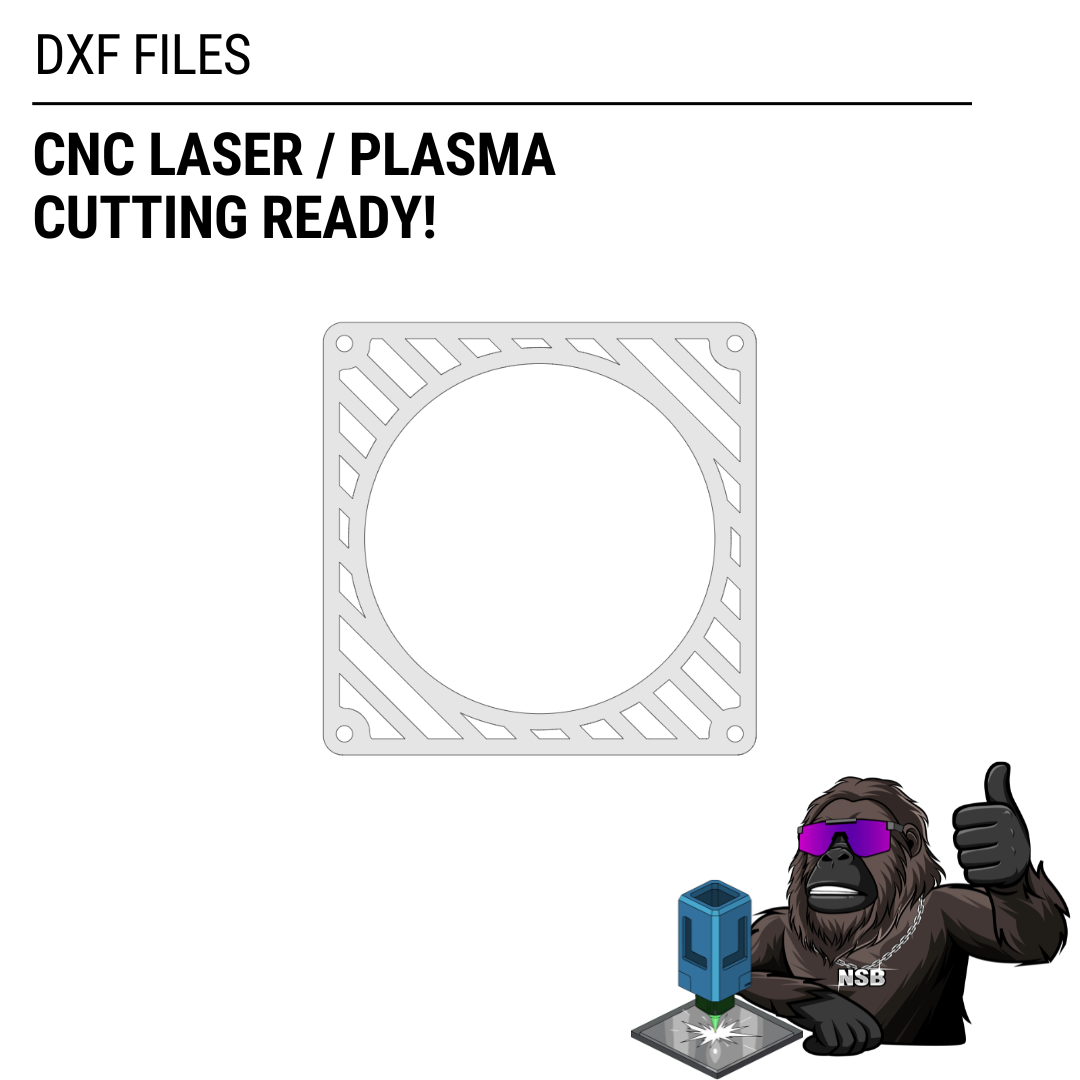

Exhaust Stack Base Plate Overlay DXF File

This is not a physical product, it is a digital asset.

DXF file is automatically sent over email, shortly after purchase.

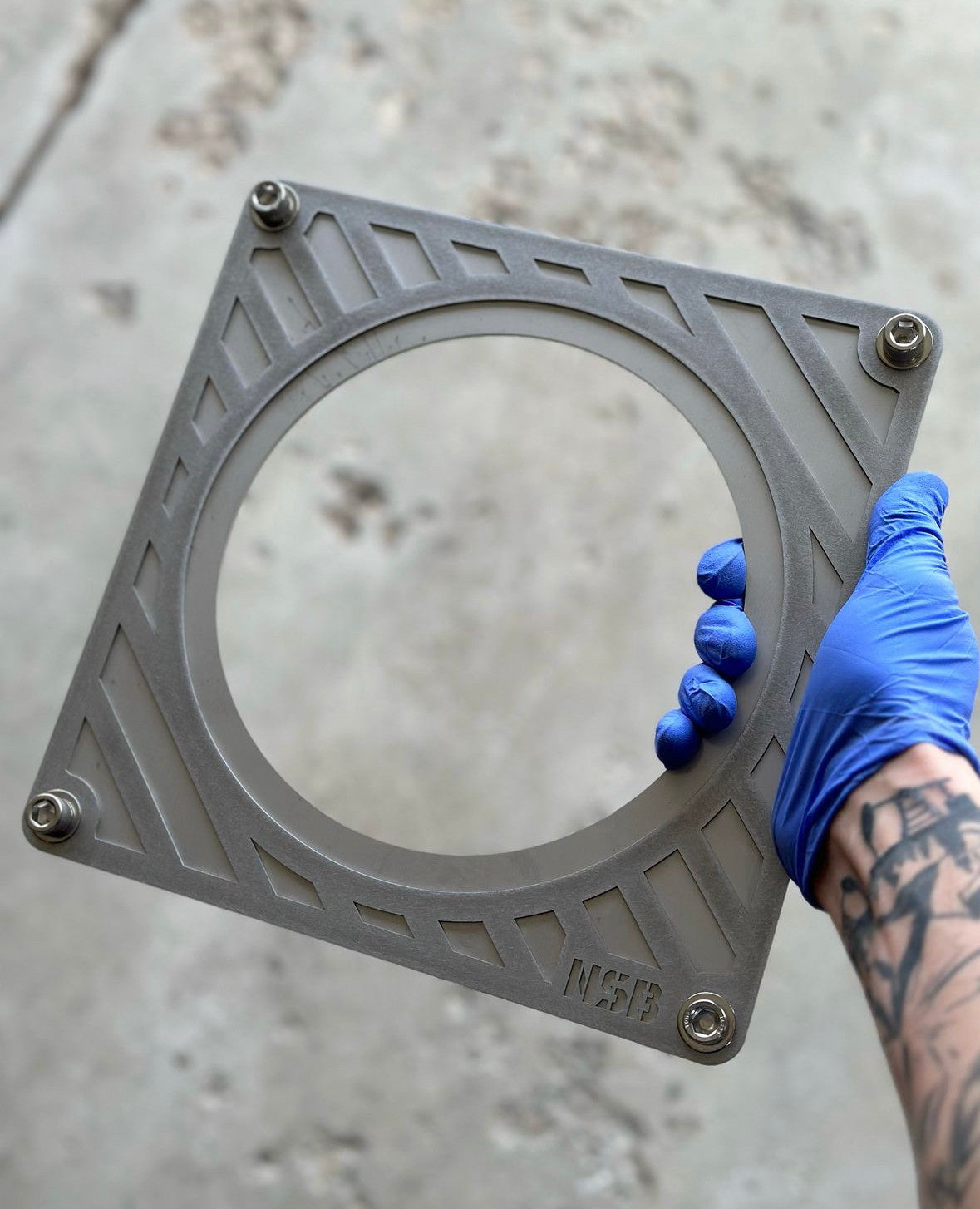

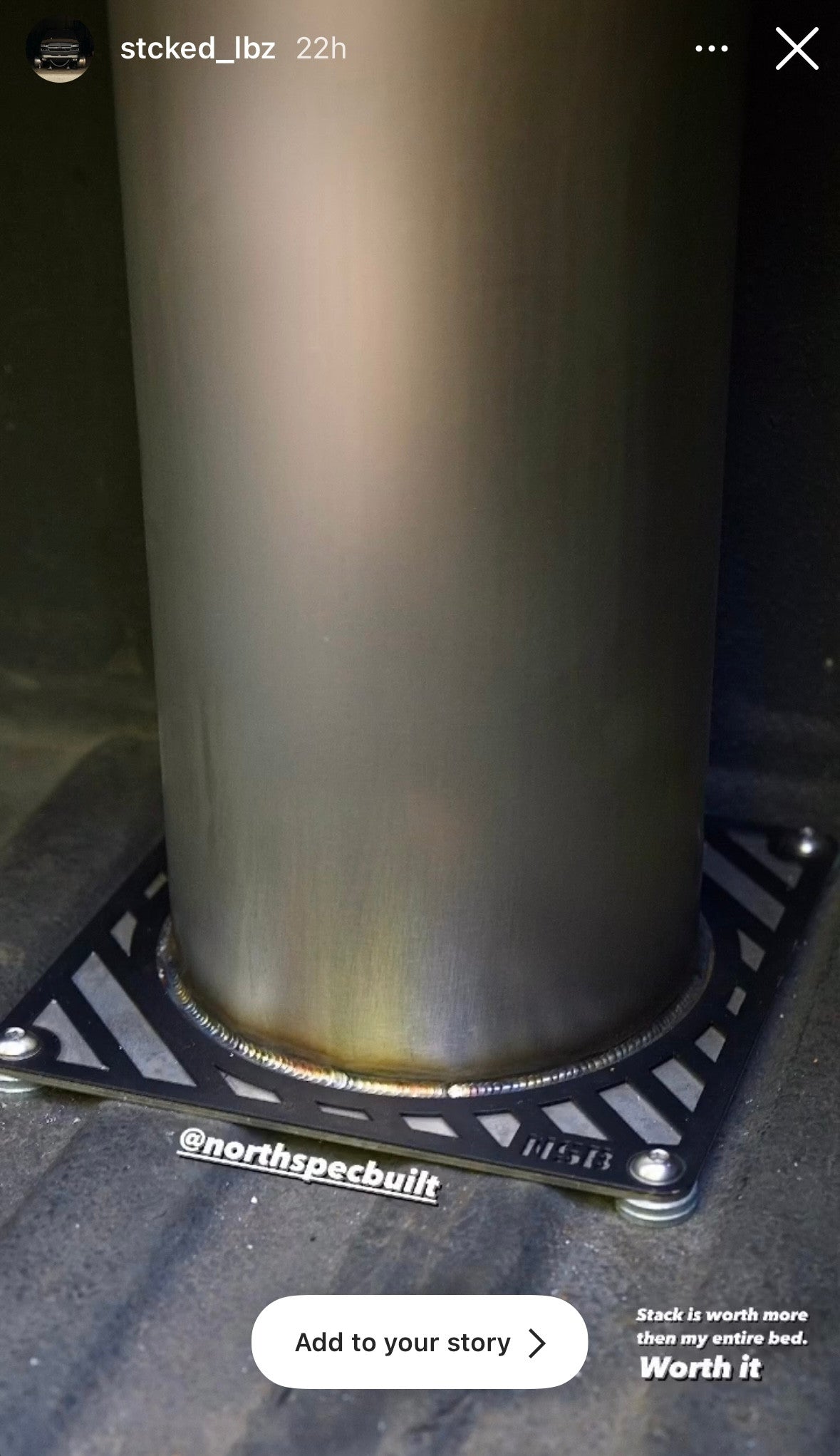

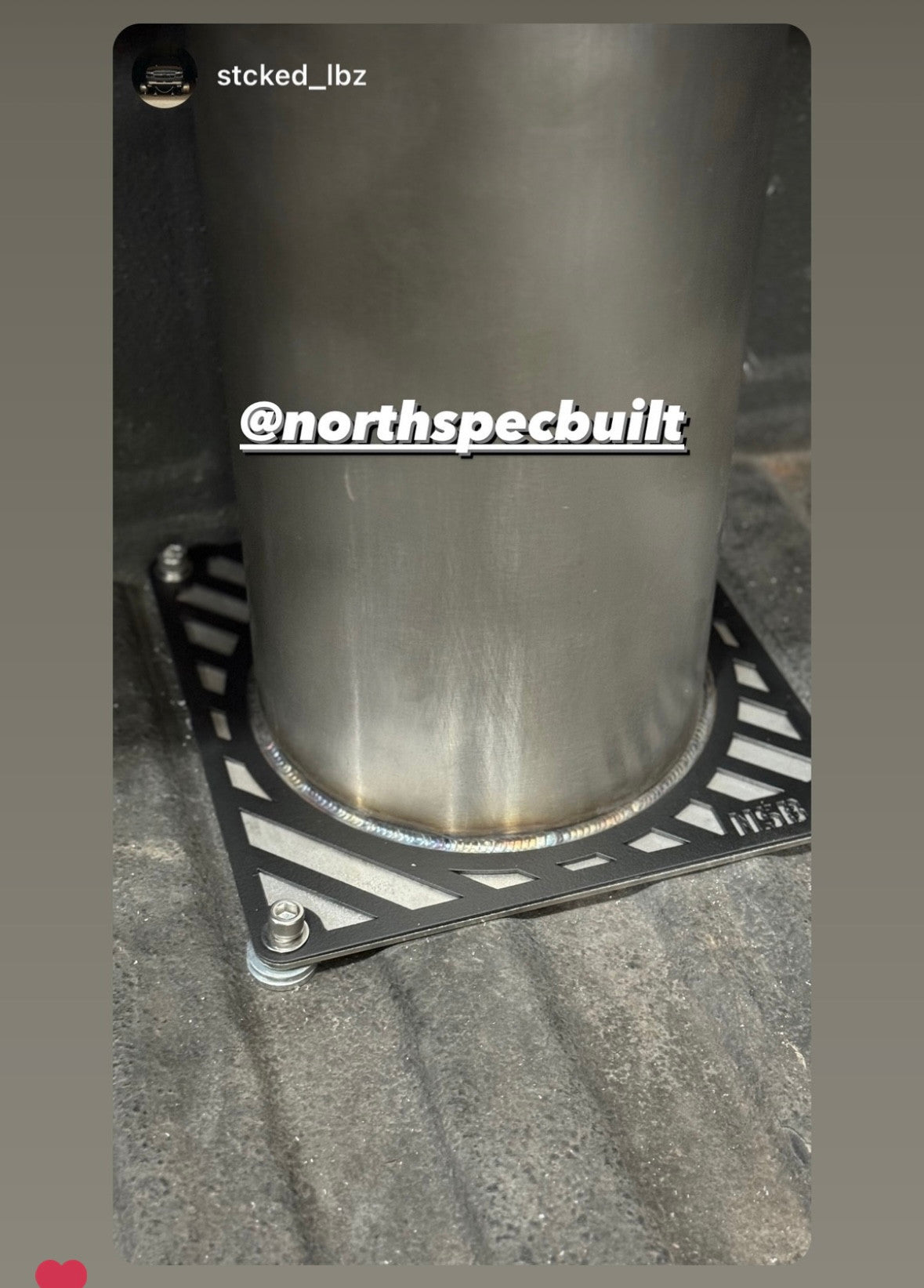

CNC plasma or laser cut your own diesel truck Exhaust Stack Base Plate Overlay. This overlay fits our standard Exhaust Stack Base Plate. For personal or commercial use, buyer agrees not to resell or redistribute digital file(s).

Base plate overlay measures 10.5" x 10.5", with an 8.5" round cut-out. Fits perfect around stacks 8" and under.

Recommended mild / stainless steel gauge: 14ga/16ga

**All Northspec Built DXF files are in mm units**
